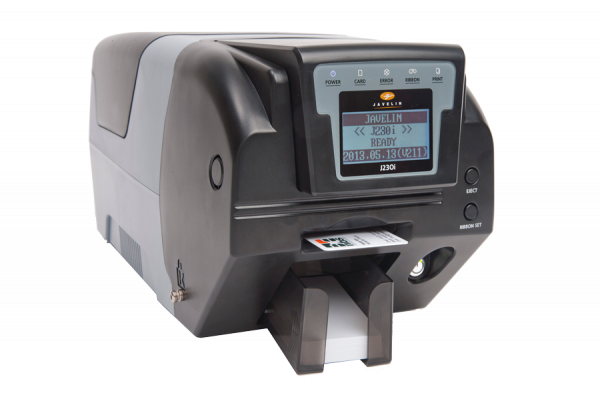

Javelin® J230i Auto Card Feed

1130,00

Each J230i comes with:
• YMCKO Roll
• USB Cable
• Cleaning Kit (Cards)
• Javelin Designer™ Create  Software

Card printers with professional performance at a perfect price!

Each J230i comes with:
• YMCKO Roll
• USB Cable
• Cleaning Kit (Cards)
• Javelin Designer™ Create  Software

Card printers with professional performance at a perfect price!

The J230i is part of EMV.G.S newest line Javelin® card printer.  Consisting of just two base models: J200i (for single card feeding) and J230i (with input hopper and output stacker). Both models print either in colour or monochrome, and a flipper is available for dual-side printing.

These new Javelin card printers are reliable, compact and easy-to-use, delivering outstanding performance at a great price. Boasting a full range of encoding options, they are an economic, reliable solution for almost every card printing and encoding need

Ideal for ID solutions and field-proven for financial/banking applications.

Printer Specifications
Print Mode Single-side printing (option: dual-side printing)
Print Method Thermal transfer (mono), Dye-sublimation (colour)
Print speed Mono: 550 cph, YMCKO: 170 cph (single-side) YMCKOK: 140 cph (dual-side)
Ribbons KrO: 500 prints/roll, YMCKO: 200 prints/roll, YMCKOK: 167 prints/roll,
Half-panel YMC plus full-panel KO: 300 prints/roll
Monochrome: black, silver, gold, red, blue, white, scratch-off: 1000 prints/roll
Card encoding options Magnetic Stripe: ISO7811 (tracks 1, 2, 3); Hi-Co/Lo-Co, Head life – 4,000,000 passes
Contact (IC): ISO 7816, EMV, PC/SC, IC contact life: 1,000,000 passes
Contactless (RF): MiFare, ISO 14443 A,B, ISO15693
Warranty 30 months printer and print head (unlimited passes)
Printer interfaces USB 2.0; internal USB hub to connect peripheral devices; built-in Ethernet (10/100Mps) RS232 network
Software drivers Windows 2000, XP, Server 2003/2008, Vista, Windows 7
Fonts/Images 300 dots per inch (11.8 dots per mm) resolution, 16.7 million colours
True Type fonts via Windows drivers
Barcodes Code 39, Code 128 B & C with & without check digit, 2 of 5 interleaved, UPC-A, EAN 8 & EAN 13 PDF-417 2D barcode and
other symbols can be printed via Windows® drivers
Card capacity Input hopper: 100 cards; Output stacker: 70 cards
Single card feeding also available
Dimensions Single-side:
403mm (L) x 202mm (H) x 192mm (W)
15.8” x 8.0” x 7.6”
Dual-side:
471mm (L) x 202mm (H) x 192mm (W)
18.5” x 8.0” x 7.6”
Weight Single-side:
5.5 kg / 12.1 lbs
Dual-side:
6.0 kg / 13.2 lbs
Power source Input: 100V – 250V, 50/60Hz; Output: DC 24V (FCC Class B, CE and UL & CUL approved)
CPU & RAM CPU: 32 bit processor RAM: 16MB
Environment Operating temperature: 0 – 50°C / 32 – 122°F, 20 – 90% RH
Storage temperature: -25 – 70°C / -13 – 158°F
Built-in Security Kensington® ClickSafe™ security anchor; locking input hopper (option)
Card Specifications
Types PVC & composite PVC
Card width/length ISO CR-80-ISO 7810: 53.98mm (W) x 85.60mm (L) / 3.375” x 2.125”
Card thickness 0.5mm – 1.2mm; 20mil – 50mil
