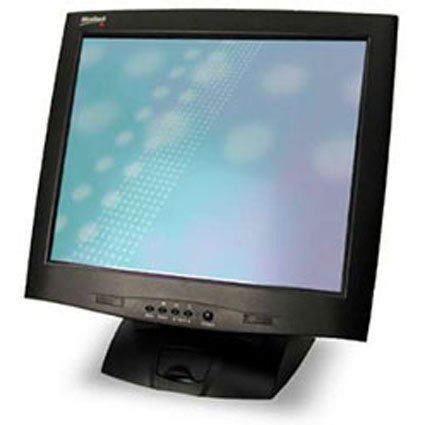

MicroTouch M170


The MicroTouch M170 LCD touchscreen monitor from 3M was designed to be different. The result of extensive customer research, innovative industrial design, and years of touch technology expertise, the M170 monitor´s unique mechanical and technological features offer premium performance for a wide-range of implementations including: retail, light industrial, point-of-sale (POS), point-of-service and hospitality.


  1. ClearTek Hard Coat
  2. Capacitive Touch Technology
  3. Stable Base
  4. Activated only by human touch
  5. 3 year “unlimited touches” warranty


Physical Specifications

  1. Dimensions (W x D x H): 15.9″ x 9.7″ x 16.3″
  2. Color: Black
  3. Display: 17″ Active Matrix TFT LCD
  4. Resolution: 1280 x 1024
  5. Contrast Ratio: 500:1
  6. Interface: D-Sub 15-Pin or DVI-D for video ; RS-232 Serial or USB for Touch Screen
  7. Mounting Options: VESA mounting compatible, 100mm

Environmental Specifications

  1. Operating Temperature: 32%deg F to 122%deg F
  2. Storage Temperature: -4%deg F to 140%deg F
  3. Humidity: 0% to 85% non-condensing

3 years FPD ; 5 years touch sensor and components
